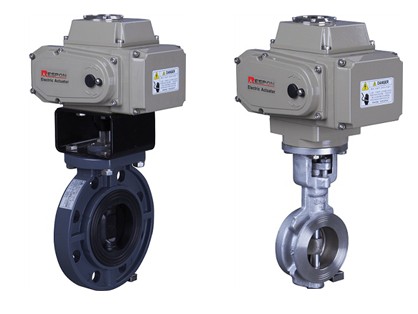

Your current location : home > products > >Adjustment Electric Actuator调节型电动执行器

Product Description


Features:
Compact and lightweight.
Easy of handling, also convenient for use even in a narrow space.
Trouble-less simple structure.
Easy of mounting, maintenance and inspection works.
Manual override with crank handle. (Standard accessory)
Thermal protector in-fitted against motor burn-out.
Easy of wiring work with terminal block.
Water protection: NEMA-4, 4X
Global standards (CQCCNASIAF,CE)

Intelligent digital control



Technical parameters:

Model

REA-05E

REA-10E

REA-20E

REA-40E

REA-50E

REA-60E

REA-100E

REA-200E

Power Supply

DC12V   DC24V  DC220V  AC24V  AC110V  AC220V AC380V; 50/60Hz

Power

10W

23W

40W

40W

90W

90W

100W

100W

Rated Current

0.24A

(AC220V)

0.32A

(AC220V)

0.48A

(AC220V)

0.48A

(AC220V)

0.92A

(AC220V)

0.92A

(AC220V)

1.0A

(AC220V)

1.2A

(AC220V)

Output Torque

50Nm

100Nm

200Nm

400Nm

500Nm

600Nm

1000Nm

2000Nm

Working Time

30S

30S

30S

30S

30S

30S

50S

100S

Rotation Angle

0-90°

0-90°

0-90°

0-90°

0-90°

0-90°

0-90°

0-90°

Gross Weight

2.4Kg

4.2Kg

7.2Kg

7.2Kg

8Kg

8Kg

11.5Kg

12.1Kg

Output Signal

4~20mA DC, 1-5VDC, 0~10VDC(others can be selected before leaving factory)

Basic deviation

No greater than ±1%

Return Difference

Less than 0.3%

Silent Area

0.4%-1.5% adjustable

Damping feature

0 times

Device Repetitive Error

0%

Voltage Endurance

DC24V:100MΩ/300VDC

100MΩ/500VDC

Protection Level

IP67

Working Temperature

-25~+60(other temperature range is open for customizing)

Installation Angle

360°

Body Material

Aluminum alloy precision press-forged piece

Optional features

Over-moment protection, heater dehumidifier
