Product Description

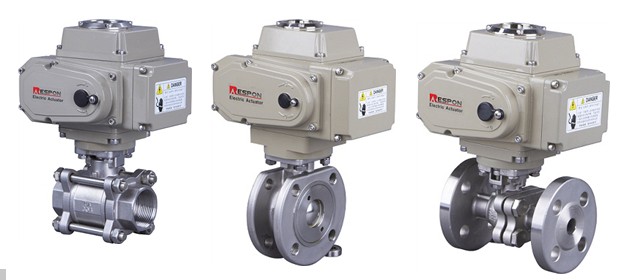

These are on-off type valve actuators. They are also operable at an intermediate position.
With the robust, compact and lightweight die cast aluminum body, they feature high performance and high output.
Features:
Compact and lightweight.
Easy of handling, also convenient for use even in a narrow space.
Trouble-less simple structure.
Easy of mounting, maintenance and inspection works.
Manual override with crank handle. (Standard accessory)
Thermal protector in-fitted against motor burn-out.
Easy of wiring work with terminal block.
Water protection: NEMA-4, 4X
Global standards (CQC, CNAS, IAF,CE)
Intelligent digital control
Technical parameters:
|
Model |
REA-100 |
REA-200 |
||||||
|
Power Supply |
AC24V |
AC110V |
AC380V |
AC220V |
AC24V |
AC110V |
AC380V |
AC |
|
Power |
100W |
100W |
||||||
|
Rated Current |
9A |
2.2A |
0.48A |
1.2A |
9A |
2.2A |
0.48A |
1.2A |
|
Output Torqie |
300Nm/800Nm/1000Nm |
2000Nm |
||||||
|
Working Time |
15S/30S/50S |
100S |
||||||
|
Control Loop |
Type A, B, C, D, E, F, G, H |
|||||||
|
Rotation Angle |
0~90° Adjustable |
|||||||
|
Gross Weight |
11.5Kg |
12.1Kg |
||||||
|
Insulation Resistance |
100MΩ/500VDC |
|||||||
|
Voltage Endurance |
IP67 |
|||||||
|
Working Temperature |
-25~+60℃(other temperature range is open for customizing) |
|||||||
|
Installation Angle |
360°, Any Angle |
|||||||
|
Body Material |
Aluminum alloy precision press-forged piece |
|||||||
|
Optional Feature Heater |
Over-moment protection, heater |
|||||||
