Product Description

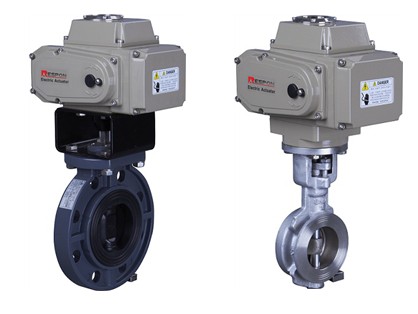

These are on-off type valve actuators. They are also operable at an intermediate position.With the robust, compact and lightweight die cast aluminum body, they feature high performance and high output.
Features:
Compact and lightweight.
Easy of handling, also convenient for use even in a narrow space.
Trouble-less simple structure.
Easy of mounting, maintenance and inspection works.
Manual override with crank handle. (Standard accessory)
Thermal protector in-fitted against motor burn-out.
Easy of wiring work with terminal block.
Water protection: NEMA-4, 4X
Global standards (CQC, CNAS, IAF,CE)
Intelligent digital control
Technical parameters:
| Model | REA-20/40 | REA-50/60 | ||||||||||
| Power Supply | DC24V | DC220V | AC24V | AC110V | AC380V | AC220V | DC24V | DC220V | AC24V | AC110V | AC380V | AC220V |
| Power | 40W/60W | 90W | ||||||||||
| Rated Current | 8A | 0.35A | 5A | 0.9A | 0.25A | 0.48A | 7A | 0.9A | 8A | 2A | 0.45A | 0.92A |
| Output Torque | 200Nm | 200Nm/400Nm | 500Nm/600Nm | |||||||||
| Working Time | 10S | 15S/30S/60S | 15S/30S/60S | |||||||||
| Control loop | Type A, B, C, D, E, F, G, H | |||||||||||
| Rotation Angle | 0-90° adjustable | |||||||||||
| Gross Weight | 7.2Kg | 8Kg | ||||||||||
| Insulation resistance | 100MΩ/300VDC | 100MΩ/500VDC | 100MΩ/300VDC | 100MΩ/500VDC | ||||||||
| Voltage endurance | 500VAC/1 Minute | 1500VAC/1minute | 500VAC/1 minute | 1500VAC/1 minute | ||||||||
| Protection Level | IP67 | |||||||||||
| Working Temperature | -25~+60℃(other temperature range is open for customizing) | |||||||||||
| Installation Angle | 360° | |||||||||||
| Body Material: | Aluminum alloy | |||||||||||
