Product Description

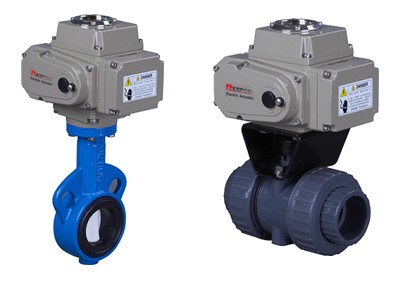

These are on-off type valve actuators. They are also operable at an intermediate position.
With the robust, compact and lightweight die cast aluminum body, they feature high performance and high output.
Features:
Compact and lightweight.Easy of handling, also convenient for use even in a narrow space.
Trouble-less simple structure.
Easy of mounting, maintenance and inspection works.
Manual override with crank handle. (Standard accessory)
Thermal protector in-fitted against motor burn-out.
Easy of wiring work with terminal block.
Water protection: NEMA-4, 4X
Global standards (CQC, CNAS, IAF,CE)
Intelligent digital control
Technical Parameters
Model
REA-10
Power Supply
DC12V
DC24V
DC220V
AC24V
AC110V
AC380V
AC220V
Power
40W
23W
Rated Current
4.8A
2.4A
0.32A
3A
0.64A
0.19A
0.32A
Output Torque
30Nm/50Nm
15Nm/30Nm/50Nm
Working Time
10S
13S/15S/20S/30S
Control loop
Type A, B, C, D, E, F, G, H
Rotation Angle
0-90° adjustable
Insulation Resistance
100MΩ/300VDC
100MΩ/500VDC
Voltage Endurance
500VAC/1 minute
500VAC/1 minute
Protection Level
IP67
Working Temperature
-25~+60℃(other temperature range is open for customizing)
Installation Angle
360°
Body Material:
Aluminum alloy precision press-forged piece
Optional Feature Heater
Dehumidifier
