Product Description

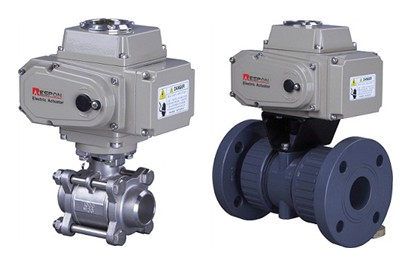

These are on-off type valve actuators and are also operable at an intermediate position.
With the robust, compact and lightweight die cast aluminum body, they feature high performance

and high output.

User Manual download:

http://www.respongroup.com/download/RESPON_Electric_Actuator_Manual.pdf



Features:
Compact and lightweight.
Easy of handling, also convenient for use even in a narrow space.
Trouble-less simple structure.
Easy of mounting, maintenance and inspection works.
Manual override with crank handle. (Standard accessory)
Thermal protector in-fitted against motor burn-out.
Easy of wiring work with terminal block.
Water protection: NEMA-4, 4X
Global standards (CQCCNASIAF,CE)

Intelligent digital control



Dimensions and Performance Parameters

Model

REA-05 Series Electric Actuator

Power Supply

DC12V

DC24V

DC220V

AC24V

AC110V

AC380V

AC220V

Power

20W

10W

Rated Current

3.8A

2A

0.21A

2.2A

0.48A

0.15A

0.24A

Output Torque

30Nm/50Nm

15Nm/30Nm/50Nm

Working Time

6S/10S

10S/20S/30S

Control loop

Type A, B, C, D, E, F, G, H

Rotation Angle

0-90° adjustable

Insulation Resistance

100MΩ/300VDC

100MΩ/500VDC

Voltage Endurance

500VAC/1 minute

500VAC/1 minute

Protection Level

 IP67

Working  Temperature

-25~+60(other temperature range is open for customizing)

Installation Angle

360°

Body Material:

Aluminum alloy precision press-forged piece

Optional Feature Heater

Dehumidifier
